Product Description
Advantages of 3M™ Scotchcast™ Flexible Splice 82-BF1
- The self-curing resin forms a splice or repair that resists abrasion
- Designed to splice or re-jacket non-shielded portable power cable and portable cord
- Suitable for use with compression C-tap connectors
- Rated for up to 1 kV applications
- MSHA Approved and RoHS 2011/65/EU Compliant

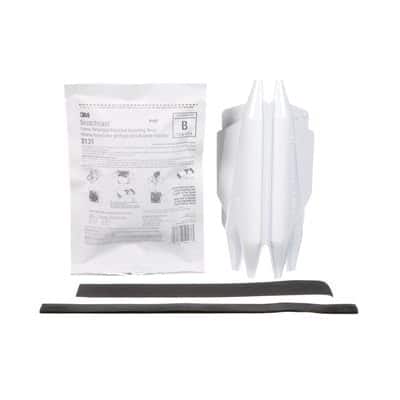

3M™ Scotchcast™ Flexible Splice 82-BF1 with flame retardant compound 2131 is designed for tap splices on non shielded portable power cables and cords. This kit is suitable for use on single or multi conductor cables using a compression C tap connector. The tap splice can accommodate cables and cords that are rated up to 1 kV.
3M™ Scotchcast™ Flexible Splice 82-BF1 features smooth, tapered splice prevents cable hang ups and splice end lifting. The flame retardant compound 2131 is a self curing resin that bonds to itself and modern cable jackets. RoHS 2011/65/EU Compliant and MSHA Approved.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 10 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Brand | |
| Cable Accessory Products | Electrical resins |
| Cable Type | Multi-core, Non-shielded, Rubber insulated reeling cables |
| Color | |
| Conductor Amount | Single |
| Conductor Sizes (Imperial) | |
| Dielectric Strength | |
| Gel Time | 17 min 73 °F (23 °C) |
| Hardness | |
| Indoor/outdoor | |
| Insulation Outside Diameter Range | 0.25 – 0.80 inch |
| Maximum Conductor Size | 1/0 AWG |
| Maximum Insulation Outer Diameter | 0.8 in |
| Maximum Operating Voltage | 5 kilovolt |
| Minimum Conductor Size | 6 AWG |
| Minimum Insulation Outer Diameter | 0.25 in |
| Mining Sector Approval | Yes |
| Model | Cast resin |
| Product Series | 82-B Series |
| Resin Type | SC 2131 |
| Shelf Life | |
| Splice Type | |
| Type | |
| Voltage | 5 kV |
| Voltage Rating | 0.6/1 kV |
