Product Description
Advantages of 3M™ Scotchcast™ Electrical Resin 280
- 65 Shore D hardness
- 20 minute gel time at 121°C (250°F)
- Provides maximum resistance to moisture and thermal shock
- Temperature rated Class F (155˚C)
- Elongates 85% longer than its original size for easy insulation or wrapping
- Chemical and moisture resistant

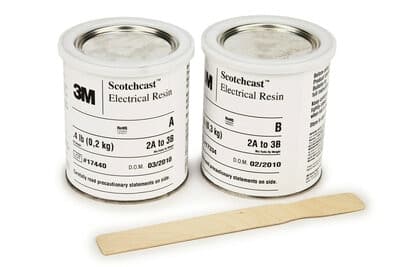

3M™ Scotchcast™ Electrical Resin 280 is a 2 part, oven curing, liquid resin used for electronic and electrical applications requiring the highest level of protection. This unfilled epoxy based resin has a low viscosity and impregnating property, which makes it easy to infuse on most surfaces. 3M™ Scotchcast™ Electrical Resin 280 is useful for applications that include filling, patching, insulating and more.
3M™ Scotchcast™ Electrical Resin 280 has a low gel point rating to ensure a quick curing process when kept in warm environments. The high tensile strength of the resin exhibits a semi flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. This resin has a high flash point, helping prevent any fire hazard due to quick ignition. Since the resin exhibits a hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. RoHS RoHS EU 2015/863 Compliant.
Additional information
| Weight | 15.2 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Base Polymer | Epoxy |
| Brand | |
| Color | |
| Cure Method | Oven |
| Dielectric Strength | |
| Elongation | |
| Flammability | |
| Flexibility | Semi-flexible |
| Gel Time | 22 minutes @250 degrees F (121 degrees C) |
| Hardness | |
| Material | |
| Mix Ratio | |
| Mixed Viscosity | Low |
| Product Form | liquid |
| Resin Cure | Oven cure unfilled resins |
| Resin Matrix | Unfilled |
| Shelf Life | |
| Temperature Rating | Class F (<=155 degrees C) |
| Tensile Strength | |
| Thermal Conductivity | Low |
| Type |
