Product Description
Advantages of 3M™ Scotchcast™ Electrical Resin 241
- 65 Shore D hardness
- Has 22-minute gel time at 250 °F (121 °C)
- Suitable where higher thermal conductivity and greater mechanical strength are required
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- Elongates 45% longer than its original size for easy insulation or wrapping
- For motor encapsulation, transformer potting and insulating other electrical and electronic components

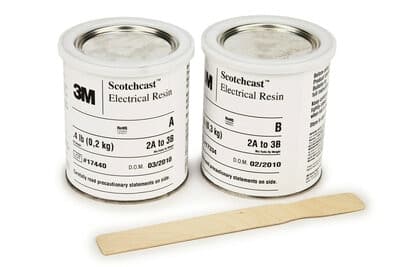

3M™ Scotchcast™ Electrical Resin 241 is a 2 part, oven curing, filled, epoxy based, liquid resin. The semi flexible resin has excellent adhesion, terminal shock, impact resistance and stable electrical and physical properties. 3M™ Scotchcast™ Electrical Resin 241 is frequently used for motor encapsulation, transformer potting and insulating other electrical as well as electronic components.
3M™ Scotchcast™ Electrical Resin 241 has built in flexibility, stable electrical as well as physical properties. This filled resin system is specially formulated to use in applications where higher thermal conductivity and greater mechanical strength are required. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.
Additional information
| Weight | 17.1 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Base Polymer | Epoxy |
| Brand | |
| Color | |
| Cure Method | Oven |
| Cure Temperature | >75 degrees C |
| Dielectric Strength | |
| Elongation | |
| Flammability Rating | Self extinguishing |
| Flexibility | Semi-flexible |
| Gel Time | 22 min @ 250 degrees F (121 degrees C) |
| Hardness | |
| Material | |
| Mix Ratio | |
| Mixed Viscosity | Medium (10.000 – 75,000 cpi) |
| Product Form | liquid |
| Resin Cure | Oven cure filled resins |
| Resin Matrix | Filled |
| Shelf Life | |
| Type | |
| Temperature Rating | Class B (<=130 degrees C) |
| Tensile Strength | |
| Thermal Conductivity | Medium (0.25 W/m-K – 0.40 W/m-K) |
