Product Description
Advantages of 3M™ Highland™ Vinyl Insulated Ring Terminal RV14-8Q
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 25/bag

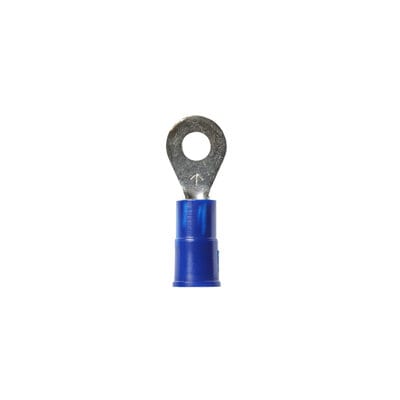

3M™ Highland™ Vinyl Insulated Ring Terminal RV14-8Q ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Highland™ Vinyl Insulated Ring Terminal RV14-8Q is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Per Bag | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.09 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Clearance (C) | 0.33 in |
| CSA File Number | LR22190 |
| Dimension E | 0.78 in |
| Insulation Material | Vinyl |
| Material | |
| Maximum Conductor Size | 14 AWG |
| Maximum Insulation Outer Diameter | 0.17 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Minimum Conductor Size | 16 AWG |
| Minimum Stud Diameter | 0.164 in |
| Overall Length | |
| Overall Width | 0.31 in |
| Ring Type | Standard |
| Stud Size | #8 |
| Terminal Style | Standard |
| Terminal Type | Ring |
| UL File Number | E23438 |
