Product Description
Advantages of 3M™ Highland™ Vinyl Insulated Female Disconnect Terminal
- Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires

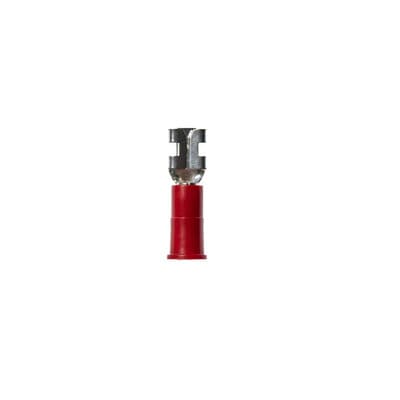

3M™ Highland™ Vinyl Insulated Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Highland™ Vinyl Insulated Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 3 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Barrel Inside Diameter | 0.085 in |
| Barrel Length | 0.25 in |
| Barrel Style | Butted |
| Brand | |
| Color | |
| Connection Width | 0.187 in |
| CSA File Number | LR22190 |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation Color | red |
| Insulation Material | Vinyl |
| Material | |
| Mates with Female Width | 0.187 in |
| Mates with Male Tab Width (W') | 0.187 in |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.145 in |
| Maximum Insulation Outside Diameter | 0.145 in |
| Maximum Operating Temperature | 105 degrees C |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 V to 1000 V |
| Minimum Conductor Size | 22 AWG |
| Overall Length | |
| Pad Width | 0.187 in |
| Tab Width | 0.187 |
| Terminal Style | Standard |
| Terminal Type | Disconnect |
| UL File Number | E70512 |
