Product Description

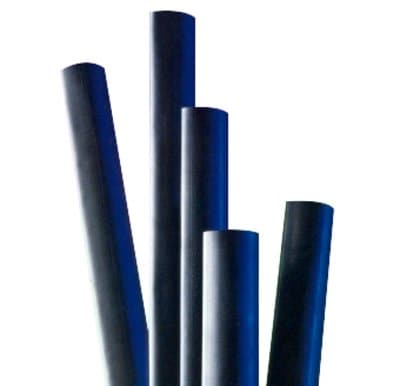

Advantages of 3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-2000-48A
- Superior resistance to abrasion, corrosion and chemicals
- Offers reliable performance for electrical splices, connections and terminations
- Suitable for large transitions, splices and battery cables
- Made of black cross-linked polyolefin
- Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
- Flame-retardant
3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-2000-48A is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.
3M™ Heat Shrinkable Medium Wall Polyolefin Tubing MDT-2000-48A is a flame retardant sleeve offers reliable performance for electrical splices, connections and terminations. The factory applied, heat activated, thermoplastic sealant acts as a barrier against adverse environmental conditions. It is fast shrinking for easy handling and installation while maintaining maximum operating reliability and system protection. It withstands temperatures of 67 to 230 degrees F ( 55 to 110 degrees C). ABS, SAE AS23053/15, Class 2 Certified and RoHS 2011/65/EU Compliant.
Additional information
| Weight | 15 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Adhesive Lined | Yes |
| Adhesive Type | |
| Brand | |
| Cable Size Range | 300 – 500 kcmil |
| Chemical Resistance | |
| Color | |
| Dielectric Strength | |
| Elongation | |
| Expanded Inner Diameter | 2 in |
| Flame Retardant | |
| Flammability Rating | Self-extinguishing |
| Heat Shrink Type | Heavy-duty Heat Shrink Tubing |
| Inner Diameter After Shrink | 0.66 in |
| Inner Diameter Before Shrink | 2 in |
| Material | |
| Maxmum Operating Temperature (celsius) | |
| Maximum Operating Temperature (fahrenheit) | |
| Minimum Expanded Tubing I. D. | 2 in |
| Minimum Shrink Temperature | 121 degrees Celsius |
| Operating Temperature Range (celsius) | |
| Operating Temperature Range (fahrenheit) | |
| Overall Length | |
| Physical Form | |
| Recovered Inner Diameter | 0.65 in |
| Shelf Life | |
| Shrink Ratio | 3:1 |
| Solution For | Access Network: xDSL |
| Tensile Strength | |
| Tubing Type | Heavy Wall |
| Type | |
| Units Per Case |
