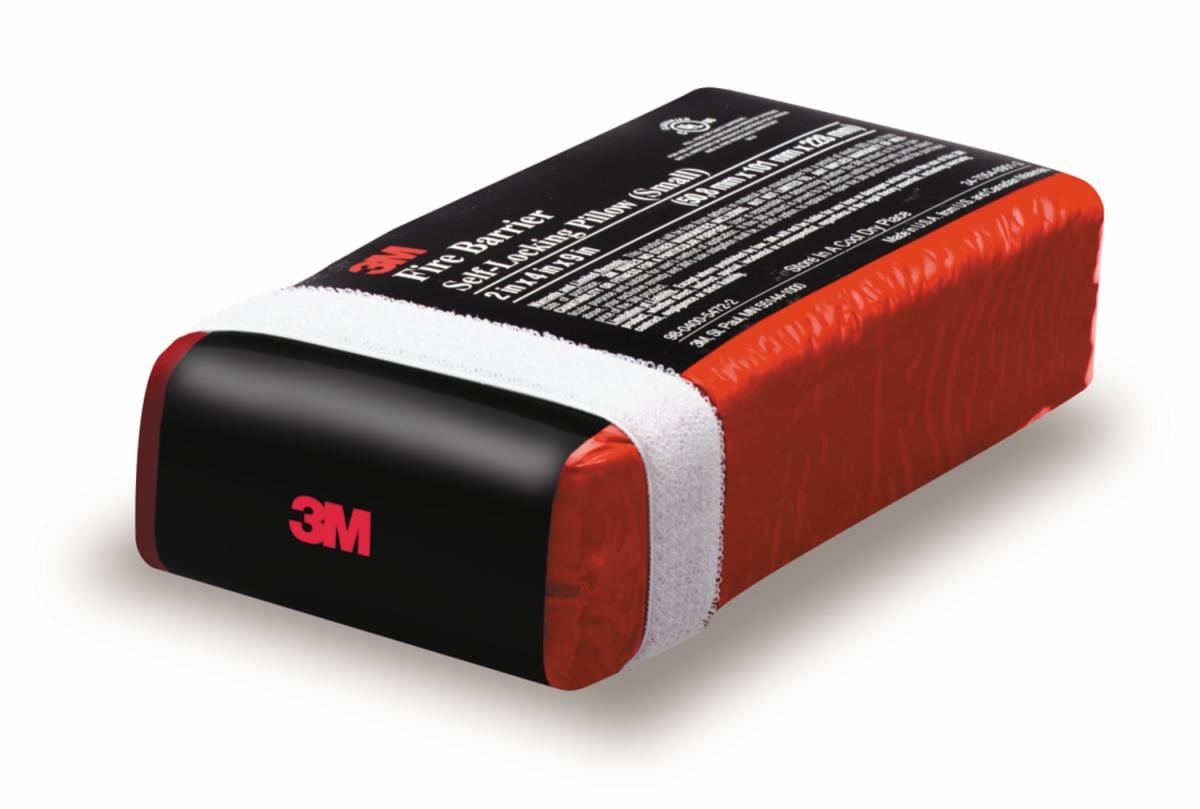

3M™ Fire Barrier Self-Locking Pillows FB249SL, Small, 2 in x 4 in x 9 in

Product Description

Advantages of 3M™ Fire Barrier Self-Locking Pillows

• Intumescent pillows expand and lock together for tight seal against flame, smoke and toxic gasses
• Easy to install, remove and reconfigure to help save time and labor
• Interlocking strips let installers quickly lock pillows together by hand for fast, accurate firestops
• Available in multiple sizes and you can cut them in the field for precise fill and compression
• No wire mesh or additional support required
• Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115

3M™ Fire Barrier Self-Locking Pillows are self-contained firestops ideal for medium to large through penetrations. Pillows feature Interlocking strips – installers can easily lock multiple pillows together to achieve precise fill and compression with no additional support required. 3M designed these intumescent fire-rated pillows to expand during a fire, locking themselves around vital components.

Simply a Better Way to Firestop
Presenting a simpler solution to the time, cost and material challenges of firestopping medium and large through penetration openings: 3M™ Fire Barrier Self Locking Pillows combine intumescent fire-rated material and a range of sizes with interlocking strips that allow installers to easily lock multiple pillows together without tools. Installers can also cut and reseal the pillows in the field. This makes it easier to assemble ideally-sized firestops for specific penetrations in floors and walls, installed to the correct compressions for maximum effectiveness in new construction or retrofit applications. Installation requires no wire mesh, steel cover plates or other additional support. The pillows are fully re-enterable and reusable – you can release the interlocking strips by hand, making it easy to reconfigure firestop pillows as you add or relocate additional services.

Recommended Applications

• Firestopping medium to large openings containing power or communication cables and conduits
• Gypsum wall, concrete or block wall and concrete floors
• Blank openings up to 540 sq. in. (3483 sq. cm)
• 1 or 2 cable racks or trays per penetration
• Conduit bank, inner duct cable and cable racks or tray applications
• You can use it in conjunction with 3M Moldable Putty+

Fully Tested and Approved
3M designs their intumescent, graphite-free Fire Barrier Self Locking Pillows to expand during a fire, locking themselves into place to protect vital components and forming a tight seal against the spread of flame, smoke and toxic gasses. They are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC-S115 when installed in listed systems.
