Product Description
Advantages of 3M™ Epoxy Film Electrical Tape Super 20
- The combination of the acrylic adhesive and the epoxy film backing provides excellent adherence and electrical properties
- Flame-retardant and highly resistant to heat, oxidation, solvents and oils
- Suitable for use in transformers, coils, stick-wound coils, wrapping relays and bobbin-wound, sub-fractional horsepower, shaded-pole motors
- Withstands a temperature range of 32 to 311 °F (0 to 155 °C)
- Printable
- UL Listed and RoHS 2011/65/EU Compliant

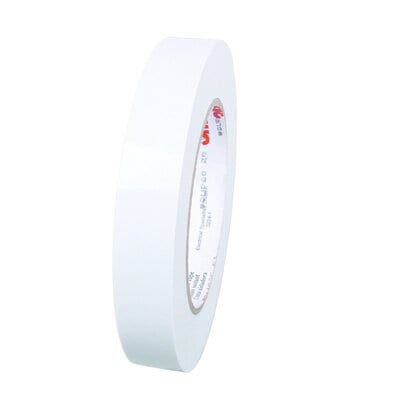

3M™ Epoxy Film Electrical Tape Super 20 is a 5-mil thick, high dielectric electrical tape. This flame-retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).
3M™ Epoxy Film Electrical Tape Super 20 has an acrylic, pressure sensitive adhesive and is resistant to heat, oxidation, solvents and oils. This puncture resistant tape has excellent electrical and handling properties. Highly conformable tape is tough and provides resistant to solder damage. It is suitable for use in wrapping relays, coils, transformers, bobbin wound sub fractional horsepower shaded pole motors and stick wound coils. UL Listed and RoHS 2011/65/EU Compliant.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, OH, JAM Industrial Supply, LLC has been a 3M Premier distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery and prices to our customers.
Additional information
| Weight | 23.5 lbs |
|---|---|
| Unit of Measure | |
| Per Case | |
| Product Id | |
| Part Number | |
| UPC | |
| Adhesive Type | |
| Backing Material | |
| Backing Thickness | |
| Brand | |
| Color | |
| Dielectric Strength | |
| Electrolytic Corrosion Factor | 1.0 |
| Elongation at Break | 120.0 % |
| Insulation Resistance | 1 x 10^6 megohms |
| Make to Order | |
| Operating Temperature Range | 0 degrees C to 150 degrees C |
| Overall Length | |
| Overall Width | 1 in |
| Shelf Life | |
| Specifications Met | RoHS 2011/65/EU |
| Tape Thickness Without Liner | |
| Tape Type |
