Product Description
Advantages of 3M™ Electrically Conductive Single-Sided Tape 1050TC-25
- XYZ-axis conductivity
- Stiffer copper for improved workability
- Thin profile
- Low electrical resistance
- High shielding performance
- Excellent conformability and quick bonding
- Good handling and workability
- Great passive intermodulation (PIM) performance
- Halogen free* and RoHS compliant*

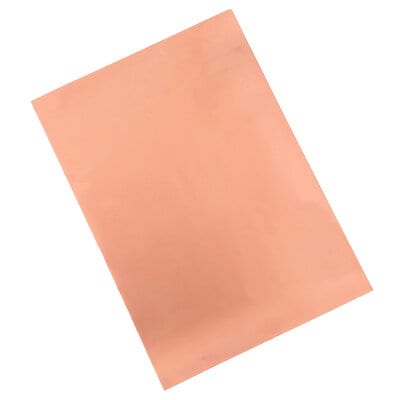

3M™ Electrically Conductive Single-Sided Tape 1050TC-25 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. 3M™ Electrically Conductive Single-Sided Tape 1050TC-25 consists of a conductive copper foil backing, conductive acrylic adhesive layer and a polyester (PET) release liner. This copper tape provides excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas, and excellent EMI shielding and electrical reliability over time. The thin product construction is ideal for applications with less Z-space. 3M™ Electrically Conductive Single-Sided Tape 1050TC-25 offers high adhesion for a one-sided thin tape, and good grounding performance to many surface types.
Additional information
| Weight | 4.456 lbs |
|---|---|
| Unit of Measure | |
| Product Id | |
| Part Number | |
| UPC | |
| Per Case | |
| Adhesion Strength | 1200 gf/in |
| Adhesive Type | |
| Applications | EMI shielding |
| Backing Material | |
| Brand | |
| Color | |
| Electrical Resistance | XY-axis 0.015 |
| Liner Material | PET |
| Maximum Operating Temperature | 121 degrees Celsius |
| Minimum Operating Temperature | -40 degrees Celsius |
| Overall Length | |
| Overall Width | 3.937 in |
| Product Usage | Printed circuit boards |
| Shelf Life | |
| Specifications Met | RoHS 2011/65/EU |
| Total Tape Thickness without Liner | 0.906 mil |
