Product Description
Benefits of 3M™ Interam™ Endothermic Mat E-5A-4
- Provides protection against intense fires including hydrocarbon pool fires
- Endothermic design releases cooling chemical-bound water when exposed to extreme heat
- Versatile – rated for structural steel, electrical circuits, wall opening membranes
- Flexible – easy to cut and configure for installation on complex shapes and around corners
- Non-corrosive and requires no maintenance when properly installed
A Cool System for Fire Protection
Tested for a full range of critical applications, the 3M™ Interam™ Endothermic Mat E-5A-4 blocks heat by chemically absorbing it – when exposed to extreme heat, it releases chemically bound water that cools the outer surface of the mat. This helps reduce the rate of temperature rise and slows heat transfer even during intense fires. 3M™ Interam™ Endothermic Mat E-5A-4 provides up to 4-hour fire protection for structural steel applications in accordance with ASTM E 119, up to 3 hour fire protection for electrical circuit applications in accordance with ASTM E 1725 and, when applied to the back and sides of metallic utility boxes, our endothermic mat helps achieve an equal F-rating and T-Rating in membrane penetrations of rated wall assemblies. 3M™ Interam™ Endothermic Mat E-5A-4 also protects against large hydrocarbon pool fires in accordance with ASTM E 1529 (UL 1709).
Recommended Applications

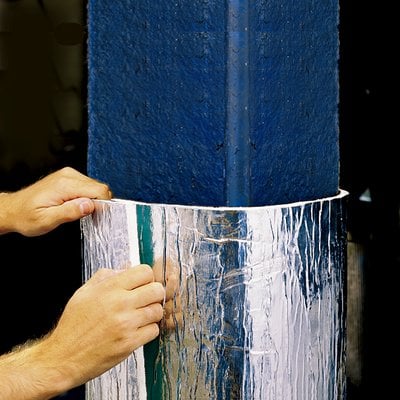

- Structural steel
- Electrical circuitry/raceways
- Cables, cable trays and conduits
- Equipment shrouds
- Membrane penetrations (e.g. spaces containing electrical panels, elevator call boxes, safe deposit boxes, medical gas boxes)
- Critical systems for safe shutdown or occupant evacuation
- New or retrofit construction
- Applied over existing fire protection
Saves Before, During and After Installation

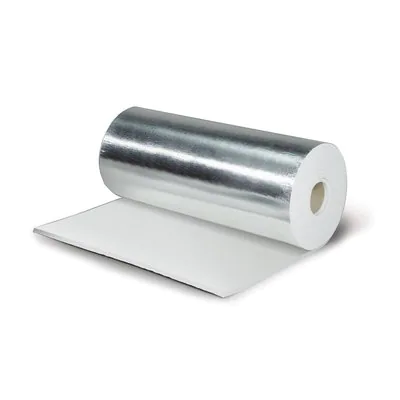

3M™ Interam™ Endothermic Mat E-5A arrives in a convenient roll that makes for simple storage and ease of use on the job site. Flexible and easy to cut and configure, this material makes installation faster and easier even on complex shapes and around corners – ideal for new and retrofit applications in the field. There is no need for water, mixing or measurement to achieve specific thicknesses. The mat is available with stainless steel or aluminum backing and is non-corrosive, easy to clean and requires no maintenance when properly installed. 3M™ Interam™ Endothermic Mat E-5A-4 is also re-enterable and easy to inspect – simply unwrap the mat, inspect the component and re-wrap.
About JAM Industrial Supply of Ohio
Locally owned and operated in Canton, Ohio, JAM Industrial Supply, LLC has been a 3M Strategic Distributor and industrial supplier for over 20 years. With our vast network of vendors, we are able to supply the industry’s best products, information, delivery, and prices to our customers.
Additional information
| Weight | 81.1 lbs |
|---|---|
| Unit of Measure | |
| Case Qty | |
| Width | |
| Color | |
| Length | |
| Part Number | |
| Product Id |
